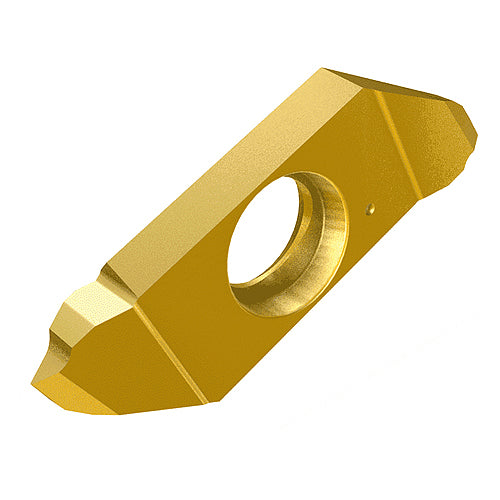

SCIR 22-MTR003 IC07
Item #: EH643333378
Brand: Iscar
Model #: 3333378
| Product Specifications | |
|---|---|
| Thread Standard | THFT | |
| Thread Pitch Maximum (TPX) | 0.9 mm |
| Corner Radius (RE) | 0.0012″ |
| Cutting Edge Length (L) | 0.866″ |
| Insert Thickness (S) | 0.276″ |
| Tool Type | Threading Regular Inserts |
| Grade | IC07 |
| Threads per Inch Maximum (TPIX) | 83 Threads/" |
| Coating | Uncoated |
| Threads per Inch Minimum (TPIN) | 28 Threads/" |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | | Threading (Ext.) Groove Turn T | Treading Inserts | |
| Body Material | Carbide |
| Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | |
| Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 0.3 mm |
