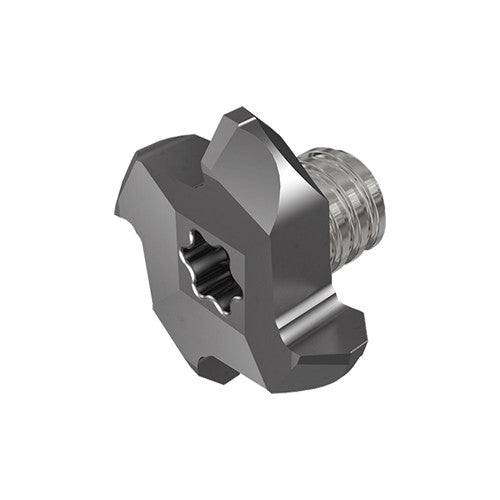

MM GRIT18K-45A-3T6 IC908
Item #: EH643329122
Brand: Iscar
Model #: 3329122
| Product Specifications | |
|---|---|
| Application | | Chamfering & Bottom Deburring | Slanted Shoulder & Chamfer | |
| Grade | IC908 |
| Cutting Diameter (DC) | 0.697″ |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.0039″ |
| Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Body Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.055″ |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Cutting Width (CW) | 0.137″ |
