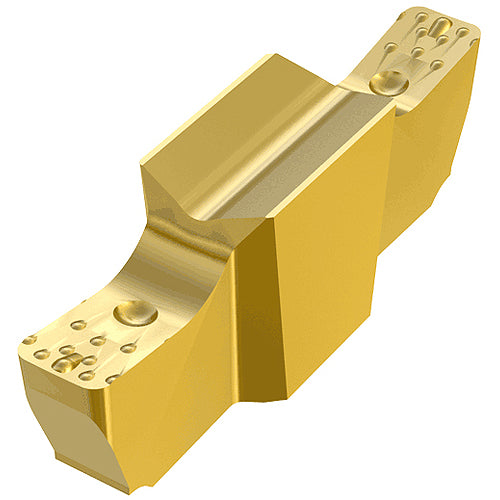

GEPI 1.47-0.00 IC528
Item #: EH6403340
Brand: Iscar
Model #: 6403340
| Product Specifications | |
|---|---|
| Corner Radius Tolerance (+/-) (RETOL) | 0.0012″ |
| Application | | Int. Grooving (side limit) | |
| Overall Length (OAL) | 0.394″ |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Insert Length (INSL) | 0.394″ |
| Max. Grooving Feed (fg(max)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.079″ |
| Min. Grooving Feed (fg(min)) | 0.0008 ″/rev |
| Cutting Edge Material | Carbide |
| Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN |
| Measurement Type | Inch |
| Grade | IC528 |
| Body Material | Carbide |
| Shape | 90° Rectangular |
