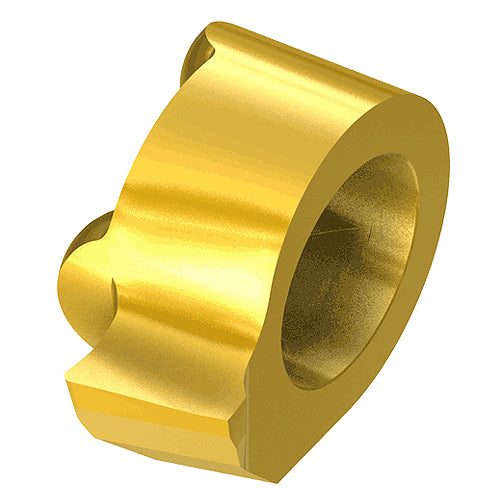

GIQR 11-B18-0.15 IC528
Item #: EH6402682
Brand: Iscar
Model #: 6402682
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.098″ |
| Shape | Grooving |
| Corner Radius (RE) | 0.006″ |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.091″ |
| Application | | Int. Back Boring and Profiling | |
| Clearance Angle Major (AN) | 18 Degrees |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Minimum Bore Diameter (DMIN) | 0.433″ |
| Measurement Type | Inch |
| Feed | 0.002 inch/rev |
| Tool Type | Groove-Turn Precision Inserts |
| Coating | TiCN+TiN |
| Body Material | Carbide |
| Grade | IC528 |
