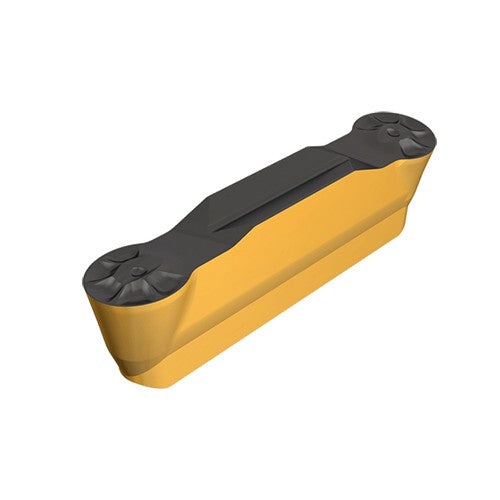

GRIP 3015Y IC5010
Item #: EH6200431
Brand: Iscar
Model #: 6200431
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.118″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.059″ |
| Application | | Ext. Grooving | Ext. Profiling | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Clearance Angle Major (AN) | 7 Degrees |
| Applicable Material | | Cast Iron | |
| Insert Length (INSL) | 0.622″ |
| Cutting Position | External |
| Feed | 0.0102 inch/rev |
| Number of Teeth | 2 |
| Coating | TiCN+Al2O3+TiN |
| Measurement Type | Inch |
| Grade | IC5010 |
| Tool Type | Groove-Turn Utility Inserts |
| Shape | 90° Rectangular |
| Body Material | Carbide |
