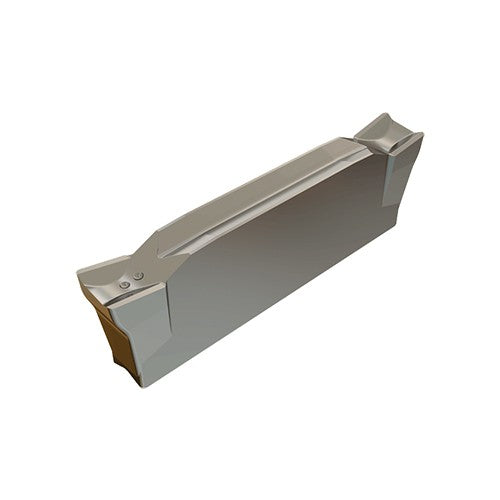

DGL 4003C-4D IC1010
Item #: EH603384587
Brand: Iscar
Model #: 3384587
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.157″ |
| Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0118″ |
| Max. Grooving Feed (fg(max)) | 0.0079 ″/rev |
| Overall Length (OAL) | 0.744″ |
| Min. Grooving Feed (fg(min)) | 0.0031 ″/rev |
| Cutting Edge Material | Carbide |
| Chip Breaker Type | C |
| Coating | TiAlN, TiN |
| Tool Type | Parting & Grooving Inserts |
| Grade | IC1010 |
| Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
| Body Material | Carbide |
| Application | | Groove Turn & Parting Inserts | Parting | |
