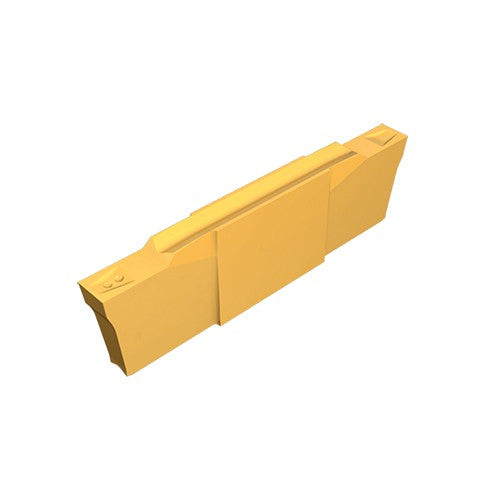

DGN 1900WP IC1030
Item #: EH603384563
Brand: Iscar
Model #: 3384563
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.075″ |
| Application | | Ext. Grooving | Groove Turn & Parting Inserts | Parting | |
| Corner Radius (RE) | 0.002″ |
| Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ |
| Max. Grooving Feed (fg(max)) | 0.0047 ″/rev |
| Overall Length (OAL) | 0.776″ |
| Min. Grooving Feed (fg(min)) | 0.0016 ″/rev |
| Cutting Depth Maximum (CDX) | 0.236″ |
| Chip Breaker Type | WP |
| Cutting Edge Material | Carbide |
| Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN |
| Measurement Type | Inch |
| Grade | IC1030 |
| Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
