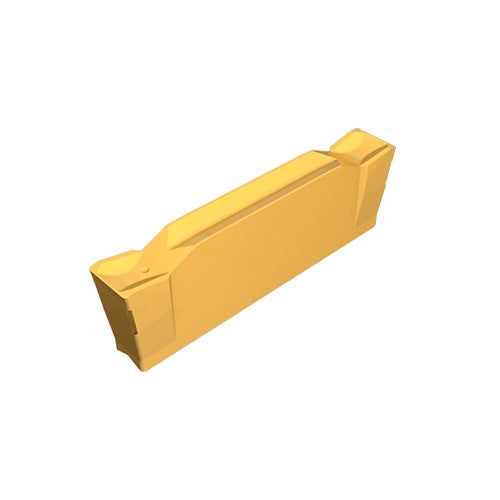

DGN 2002C IC1010
Item #: EH603364915
Brand: Iscar
Model #: 3364915
| Product Specifications | |
|---|---|
| Corner Radius (RE) | 0.0079″ |
| Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ |
| Applicable Material | | Steel | Stainless Steel | |
| Overall Length (OAL) | 0.783″ |
| Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ |
| Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Edge Material | Carbide |
| Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN, TiN |
| Measurement Type | Inch |
| Grade | IC1010 |
| Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
