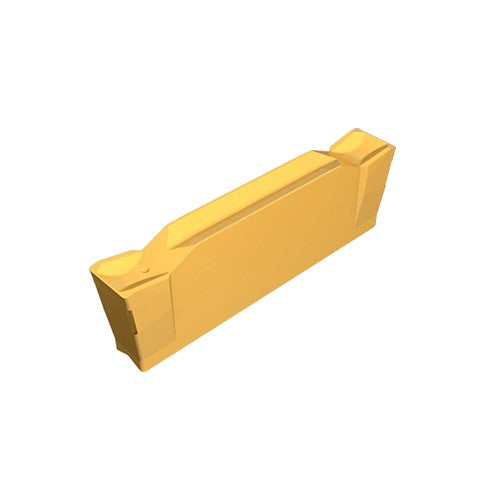

DGN 2202C IC1030
Item #: EH603337127
Brand: Iscar
Model #: 3337127
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.087″ |
| Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Groove Turn & Parting Inserts | Int. Face Grooving | Parting | |
| Corner Radius (RE) | 0.0079″ |
| Applicable Material | | Steel | Stainless Steel | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.0008″ |
| Max. Grooving Feed (fg(max)) | 0.0063 ″/rev |
| Overall Length (OAL) | 0.78″ |
| Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ |
| Chip Breaker Type | C |
| Cutting Edge Material | Carbide |
| Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN |
| Measurement Type | Inch |
| Grade | IC1030 |
| Body Material | Carbide |
| Cutting Direction (HAND) | Neutral |
