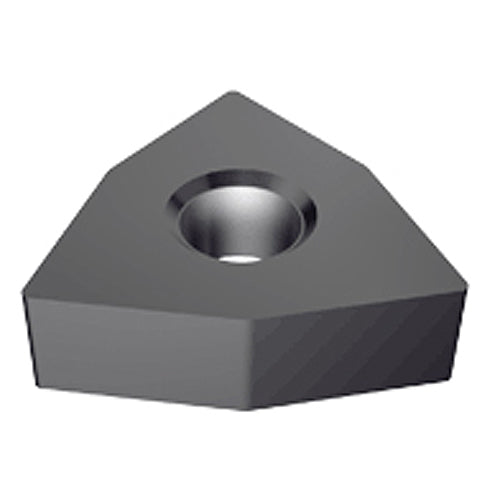

WNGA 433T IS8
Item #: EH5700315
Brand: Iscar
Model #: 5701182
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Grade | IS8 |
| Application | | Ext. 80° Trigon 95° Approach | Insert | Int. 80° Trigon 95° Approach | |
| Tool Type | Turn Ultra hard Inserts |
| Insert Style | WNGA |
| Min D.O.C. | 0.079″ |
| Corner Radius (RE) | 0.0472″ |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 433 |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.343″ |
| Max. Turning Feed (ft(max)) | 0.0394 ″/rev |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | Ceramic |
| Shape | 80° Trigon |
| Coating | Uncoated |
| Body Material | Carbide |
