EBI-4 625-3.0CVF6 V910
Item #: EH569500337
Brand: Iscar
Model #: 3398332
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Corner Radius (RE) | 5/16″ |
| Depth of Cut Maximum (APMX) | 3″ |
| Grade | V910 |
| Overall Length (OAL) | 6″ |

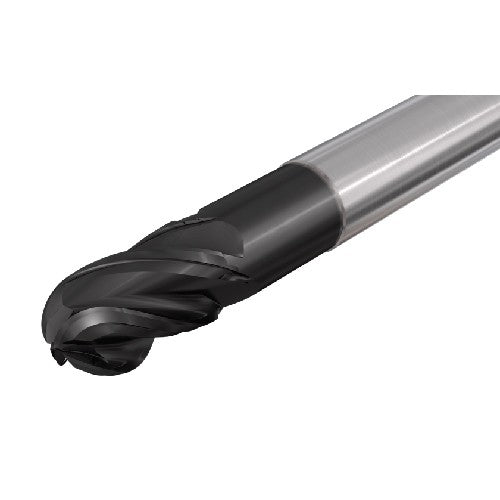

| Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | TiAlCN, THIKNESS 2-4 |
| Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 3″ |
