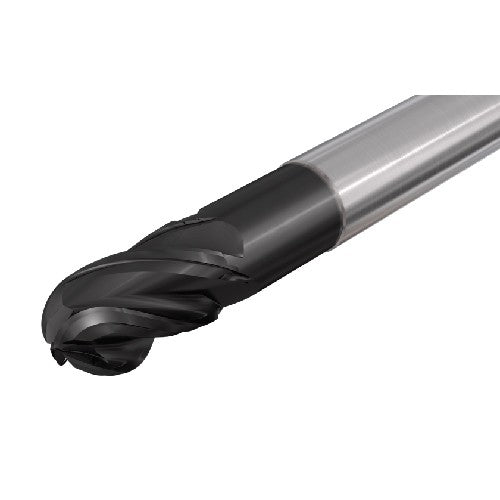

EBI-4 500-625CVF2.5 V910
Item #: EH569500303
Brand: Iscar
Model #: 3398298
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Grade | V910 |
| Overall Length (OAL) | 2-1/2″ |
| Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | TiAlCN, THIKNESS 2-4 |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 5/8″ |
