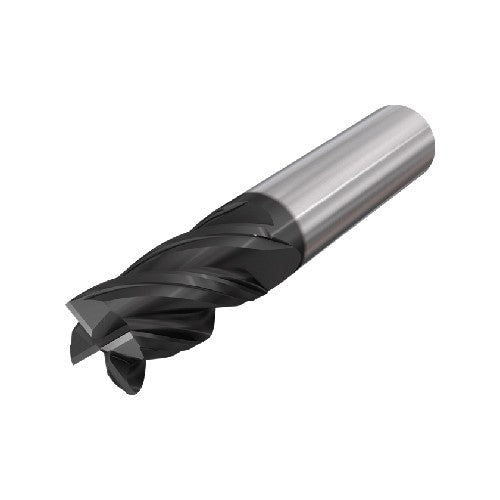

ECI-4 500-875/2.12C06VF4 V910
Item #: EH569500150
Brand: Iscar
Model #: 3398145
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Usable Length (LU) | 2-1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Corner Radius (RE) | 0.06″ |
| Overall Length (OAL) | 4″ |
| Grade | V910 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Coating | TiAlCN, THIKNESS 2-4 |
| Body Material | Carbide |
| Flute Count (NOF) | 4 |
| Decimal Equivalent | 0.5″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
