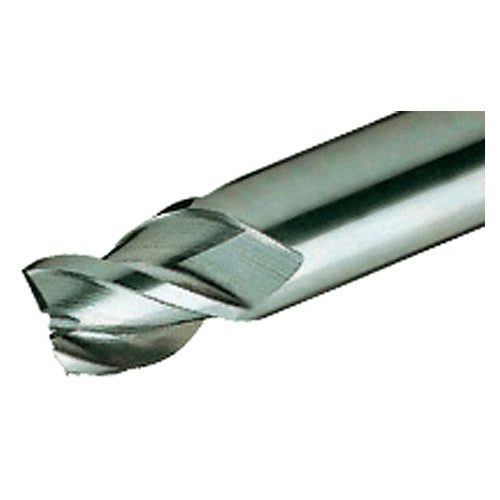

EC-B3 12-26C12E73 IC900
Item #: EH5667684
Brand: Iscar
Model #: 5667684
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 26 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 73 mm |
| Grade | IC900 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Coating | AlTiN |
| Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Flute Count (NOF) | 3 |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Square |
| Connection Code Machine Side (CCMS) | Cylindrical |
