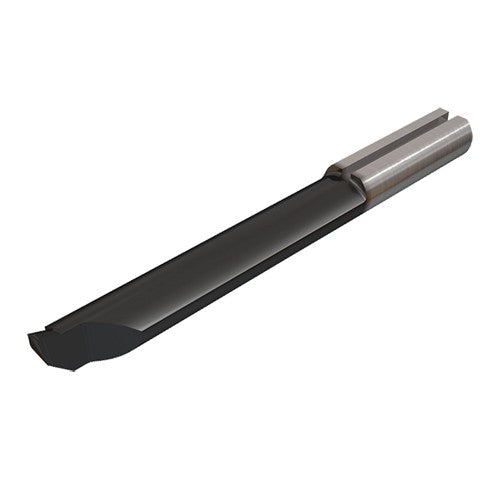

PICCO R 050.4-24C IC908
Item #: EH566404197
Brand: Iscar
Model #: 6404197
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.157″ |
| Front End Width (a) | 0.138″ |
| Minimum Bore Diameter (DMIN) | 0.157″ |
| Corner Radius (RE) | 0.004″ |
| Functional Length (LF) | 1.496″ |
| Cutting Depth Maximum (CDX) | 0.012″ |
| Reduced Body Diameter Length (LDRED) | 0.945″ |
| Functional Width (WF) | 0.059″ |
| Cutting Direction (HAND) | Right Hand |
| ft(max) | 0.0020 inch/rev |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | IC908 |
| Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | |
| Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Measurement Type | Inch |
