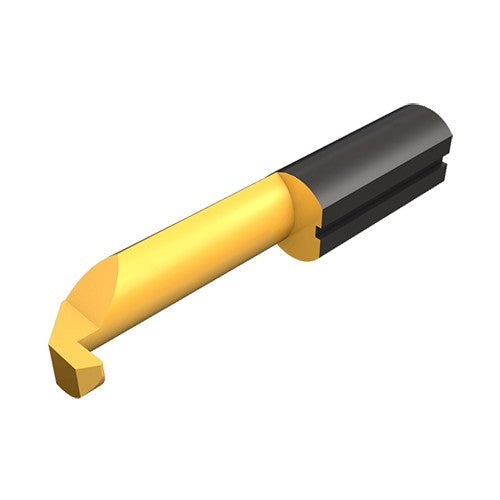

PICCO L 080.0006-30 IC228
Item #: EH566403664
Brand: Iscar
Model #: 6403664
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Corner Radius (RE) | 0.008″ |
| Cutting Position | Internal |
| Cutting Width (CW) | 0.059″ |
| Application | | Int. Back Boring and Profiling | |
| Cutting Depth Maximum (CDX) | 0.071″ |
| Tool Type | Solid Carbide Turn Tool |
| Overall Length (OAL) | 1.772″ |
| Minimum Bore Diameter (DMIN) | 0.236″ |
| Cutting Direction (HAND) | Left Hand |
| Front End Width (a) | 0.209″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Body Material | Carbide |
| Grade | IC228 |
| Overhang Minimum (OHN) | 1.142″ |
