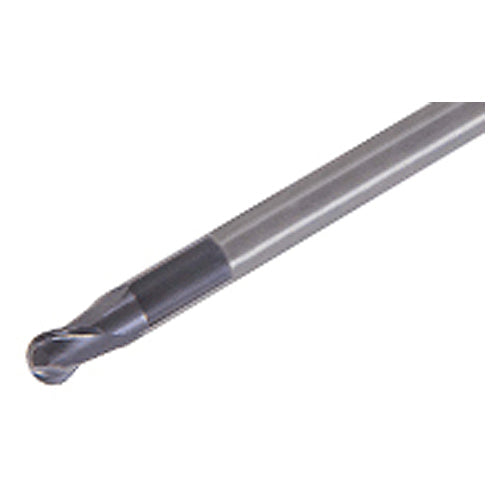

EB-A2 06-06/12C06M90 IC903
Item #: EH5650067
Brand: Iscar
Model #: 5650067
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Application | | Profiling | |
| Depth of Cut Maximum (APMX) | 6 mm |
| Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 90 mm |
| Neck Diameter (DN) | 5.9 mm |
| Cutting Edge Material | Carbide |
| Grade | IC903 |
| Coating | TiAlN |
| Tool Type | Solid ball nose |
| Flute Count (NOF) | 2 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 12 mm |
