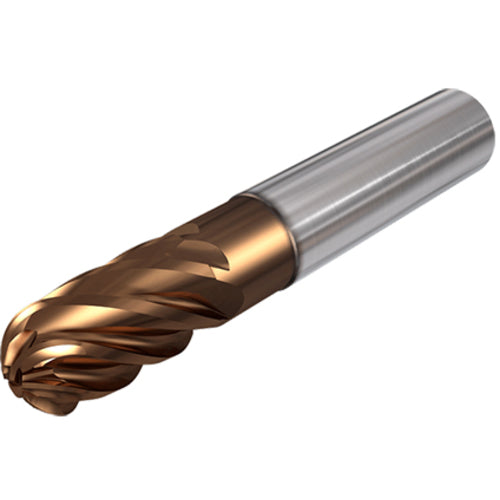

EBI-6 750-1.25C375VF6 IC608
Item #: EH563407310
Brand: Iscar
Model #: 3407310
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Corner Radius (RE) | 3/8″ |
| Overall Length (OAL) | 6″ |
| Grade | IC608 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Coating | AlTiCrSiN |
| Body Material | Carbide |
| Flute Count (NOF) | 6 |
| Decimal Equivalent | 0.75″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 4″ |
