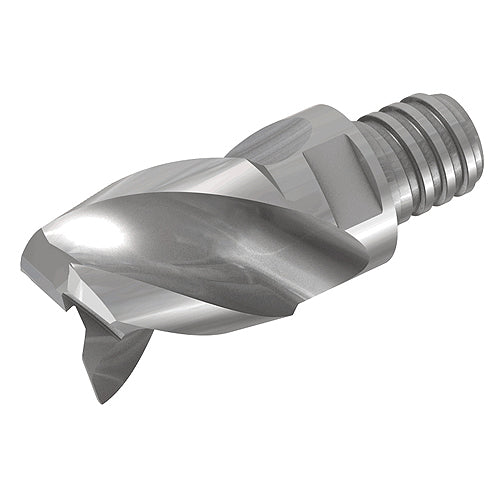

MM EA.500H500R090-3T08 IC08
Item #: EH563405062
Brand: Iscar
Model #: 3405062
| Product Specifications | |
|---|---|
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 1/2″ |
| Overall Length (OAL) | 1.218″ |
| Applicable Material | | Non Ferrous Metals | |
| Grade | IC08 |
| Flute Count (NOF) | 3 |
| Coating | Uncoated |
| Corner Radius (RE) | 0.09″ |
| Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| fz(max) | 0.0043 ″/tooth |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.488″ |
| Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 0.906″ |
| Body Material | Carbide |
