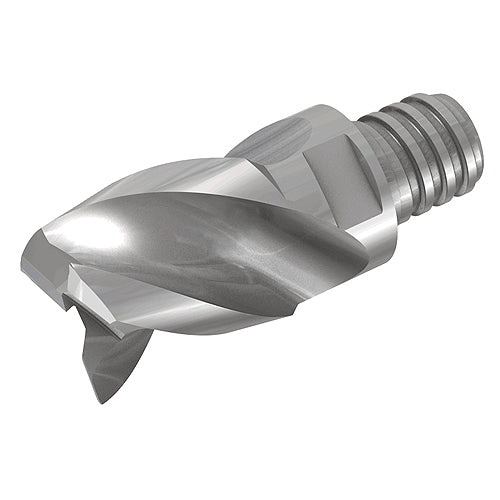

MM EA.375H375R060-3T06 IC08
Item #: EH563405058
Brand: Iscar
Model #: 3405058
| Product Specifications | |
|---|---|
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 3/8″ |
| Grade | IC08 |
| Applicable Material | | Non Ferrous Metals | |
| Coating | Uncoated |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.06″ |
| fz(max) | 0.0039 ″/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 3/8″ |
| Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.366″ |
| Body Material | Carbide |
| Functional Length (LF) | 0.748″ |
