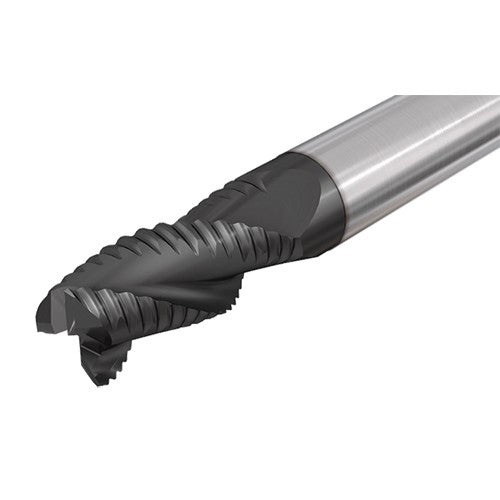

ERC080E20-3C08CH05DA63 IC1508
Item #: EH563401444
Brand: Iscar
Model #: 3401444
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Application | Roughing | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 20 mm |
| Corner Chamfer Width (CHW) | 0.5 mm |
| Overall Length (OAL) | 63 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Cutting Edge Material | Carbide |
| Grade | IC1508 |
| Coating | DLC |
| Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Flute Count (NOF) | 3 |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Chamfer |
| Measurement Type | Metric |
| Usable Length (LU) | 28 mm |
