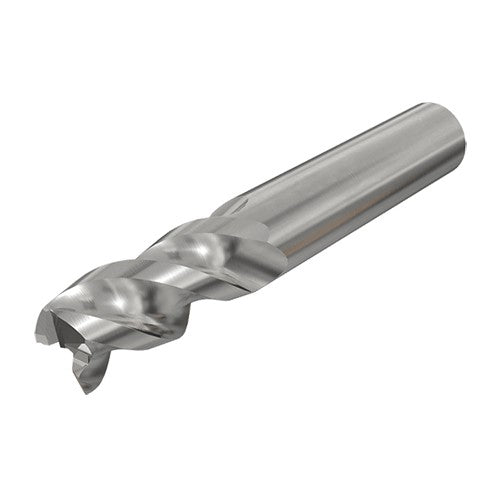

ECA-B-3 04-12C06-57 R02D IC1508
Item #: EH563399573
Brand: Iscar
Model #: 3399573
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Application | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 12 mm |
| Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 57 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Cutting Edge Material | Carbide |
| Grade | IC1508 |
| Coating | DLC |
| Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Flute Count (NOF) | 3 |
| Maximum Feed per Tooth (fz(max)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees |
| Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Measurement Type | Metric |
