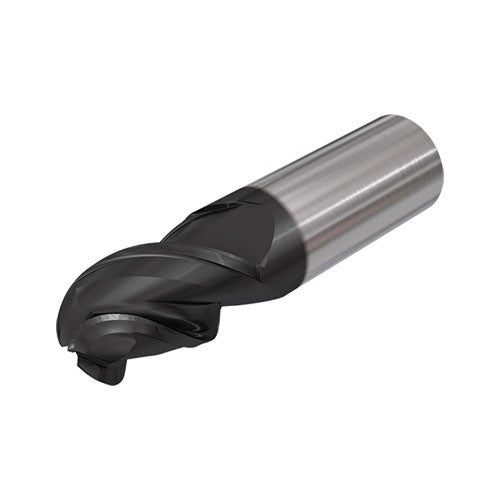

EBAI-B3 .75-1.625C-4EC IC1508
Item #: EH563399350
Brand: Iscar
Model #: 3399350
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | | Profiling | |
| Depth of Cut Maximum (APMX) | 1-5/8″ |
| Corner Radius (RE) | 3/8″ |
| Overall Length (OAL) | 4″ |
| Grade | IC1508 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Coating | DLC |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.75″ |
| Usable Length (LU) | 1-5/8″ |
| Measurement Type | Inch |
