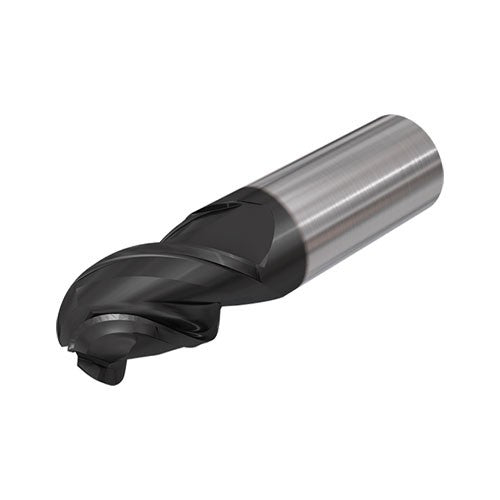

EBAI-B3 .312-.5C-2EC IC1508
Item #: EH563399307
Brand: Iscar
Model #: 3399307
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.312″ |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 0.312″ |
| Application | | Profiling | |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Corner Radius (RE) | 0.1563″ |
| Overall Length (OAL) | 2″ |
| Grade | IC1508 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Coating | DLC |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.312″ |
| Usable Length (LU) | 1/2″ |
| Measurement Type | Inch |
