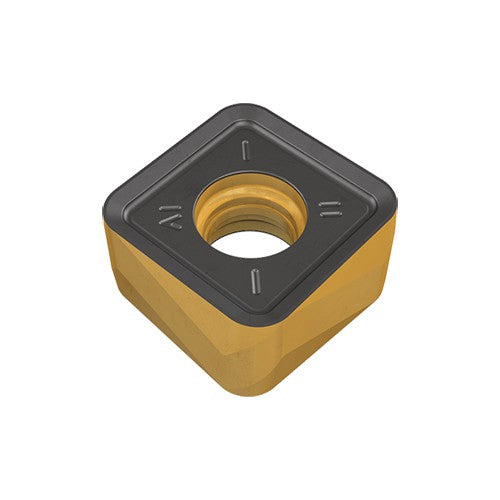

FFQ8 SZMU 120520T IC810
Item #: EH563395195
Brand: Iscar
Model #: 3395195
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC810 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Maximum Feed per Tooth (fz(max)) | 0.059 ″/tooth |
| Cutting Edge Length (L) | 0.472″ |
| Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.472″ |
| Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0787″ |
| Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Number of Cutting Edges | 8 |
| Inscribed Circle Diameter (IC) | 0.472″ |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.23″ |
| Body Material | Carbide |
| Coating | AlTiCrN+TiN |
