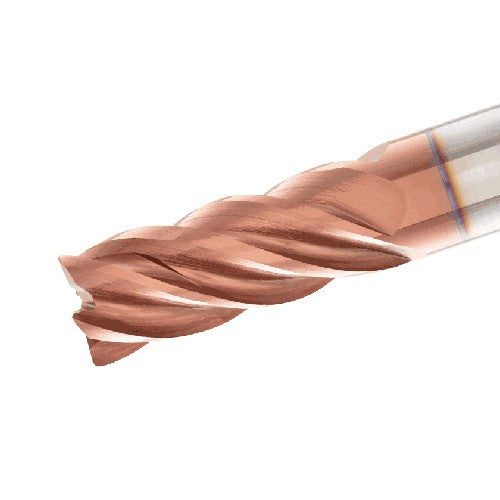

ECYI-S5R 1.0-2.00C190CFS5 IC608
Item #: EH563385658
Brand: Iscar
Model #: 3385658
Product Specifications | |
---|---|
Cutting Diameter (DC) | 1″ |
Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
Connection Diameter Machine Side (DCONMS) | 1″ |
Corner Radius (RE) | 0.19″ |
Depth of Cut Maximum (APMX) | 2″ |
Ramping Angle Maximum (RMPX) | 5 Degrees |
Overall Length (OAL) | 5″ |
Grade | IC608 |
Cutting Edge Material | Carbide |
Tool Type | Solid carbide non center cutting endmills 90 Degrees |
Coating | AlTiCrSiN |
Coolant Supply Property (CSP) | External |
Flute Count (NOF) | 5 |
Body Material | Carbide |
Flute Helix Angle (FHA) | 37 Degrees |
Decimal Equivalent | 1″ |
Shank Type | Round |
Measurement Type | Inch |
End Shape | Corner Radius |
Connection Code Machine Side (CCMS) | Cylindrical |
Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
