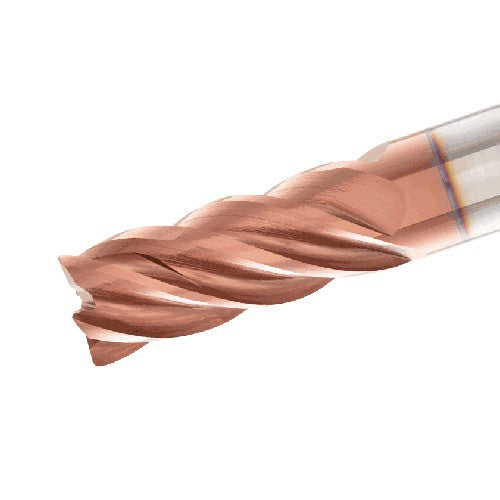

‎ECYI-S5R 1.0-2.00C030CFS5 IC608

‎ECYI-S5R 1.0-2.00C030CFS5 IC608


Item #: EH563385654
Brand: Iscar
Model #: 3385654

Product Specifications
Cutting Diameter (DC) 1″
Application Helical Interpolation | Rampdown | Shouldering | Slotting
Connection Diameter Machine Side (DCONMS) 1″
Corner Radius (RE) 0.03″
Depth of Cut Maximum (APMX) 2″
Ramping Angle Maximum (RMPX) 5 Degrees
Overall Length (OAL) 5″
Grade IC608
Cutting Edge Material Carbide
Tool Type Solid carbide non center cutting endmills 90 Degrees
Coating AlTiCrSiN
Coolant Supply Property (CSP) External
Flute Count (NOF) 5
Body Material Carbide
Flute Helix Angle (FHA) 37 Degrees
Decimal Equivalent 1″
Shank Type Round
Measurement Type Inch
End Shape Corner Radius
Connection Code Machine Side (CCMS) Cylindrical
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys |
$785.17
