EB040A12-4C04 IC902
Item #: EH563383866
Brand: Iscar
Model #: 3383866
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Application | | Profiling | |
| Depth of Cut Maximum (APMX) | 12 mm |
| Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 50 mm |
| Grade | IC902 |
| Cutting Edge Material | Carbide |

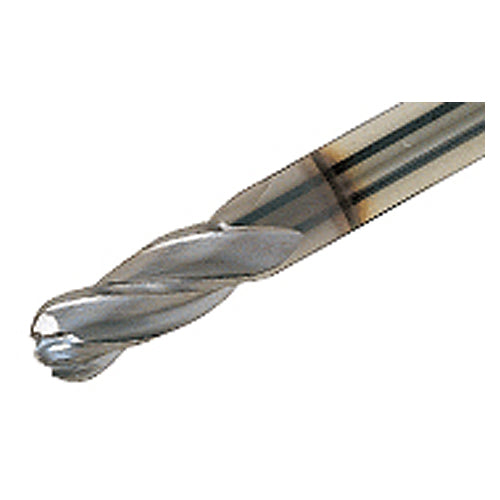

| Tool Type | Solid ball nose |
| Coating | TiAlN |
| Body Material | Carbide |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round |
