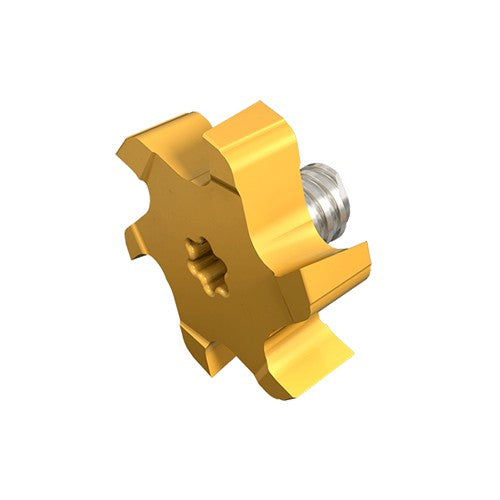

MM TS135-H40D-06T05 IC908
Item #: EH563383514
Brand: Iscar
Model #: 3383514
| Product Specifications | |
|---|---|
| Application | | Internal Groove Milling | Side Slotting | T Slotting | |
| Grade | IC908 |
| Cutting Diameter (DC) | 13.5 mm |
| Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 |
| Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm |
| Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 |
| Tool Type | Solid "T" slot cutters |
| Cutting Depth Maximum (CDX) | 2.65 mm |
| Body Material | Carbide |
| Cutting Width (CW) | 4 mm |
| Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 11.25 mm |
