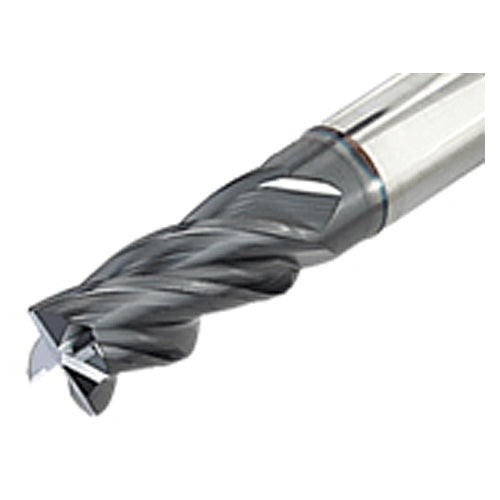

EC-H4L 10-22/40W10CFR.5C IC900
Item #: EH563382212
Brand: Iscar
Model #: 3382212
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Application | Finishing | Roughing | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 22 mm |
| Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 80 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Cutting Edge Material | Carbide |
| Grade | IC900 |
| Coating | AlTiN |
| Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | Through Hole |
| Flute Helix Angle (FHA) | 35 Degrees |
| Body Material | Carbide |
| Shank Type | Weldon |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 40 mm |
