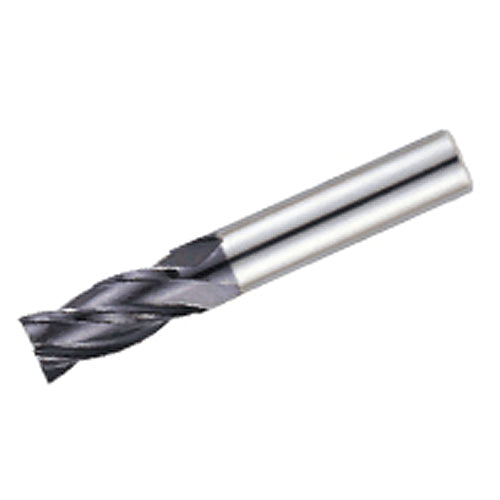

EC-H5M 08-17/25C08CFR.1 IC900
Item #: EH563382167
Brand: Iscar
Model #: 3382167
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Application | Finishing | Roughing | Helical Interpolation | Rampdown | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 17 mm |
| Corner Radius (RE) | 0.1 mm |
| Overall Length (OAL) | 61 mm |
| Ramping Angle Maximum (RMPX) | 2 Degrees |
| Cutting Edge Material | Carbide |
| Grade | IC900 |
| Coating | AlTiN |
| Tool Type | Solid carbide non center cutting endmills 90 Degrees |
| Flute Count (NOF) | 5 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 25 mm |
