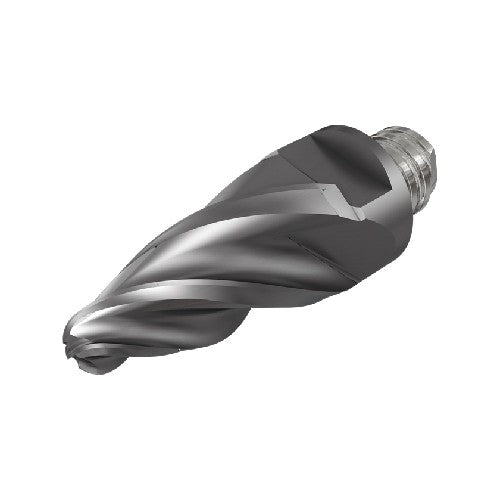

MM EOB500R157R750A82-4T08 IC908
Item #: EH563378691
Brand: Iscar
Model #: 3378691
| Product Specifications | |
|---|---|
| Application | | Profiling | |
| Overall Length (OAL) | 1.376″ |
| Cutting Diameter (DC) | 0.243″ |
| Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 4 |
| Profile Angle (PRFA) | 16 |
| Corner Radius (RE) | 0.157″ |
| Tool Cutting Edge Angle (KAPR) | 82 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 1/2″ |
| fz(max) | 0.004 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.82″ |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Body Material | Carbide |
| Functional Length (LF) | 1.063″ |
