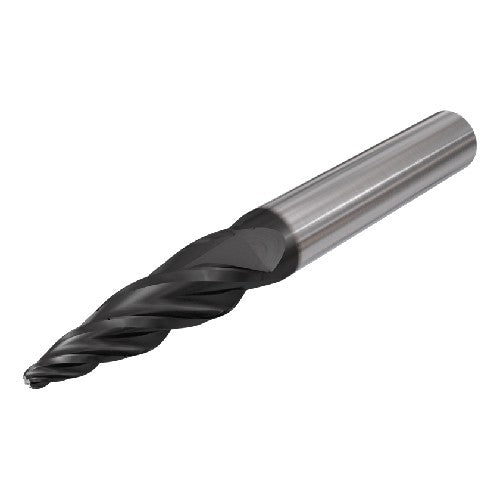

EOB-R2R85A24/8-4C10-72 IC902
Item #: EH563366924
Brand: Iscar
Model #: 3366924
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.14 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Application | Finishing | Semi Finish | Profiling |
| Depth of Cut Maximum (APMX) | 26.6 mm |
| Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 72 mm |
| Grade | IC902 |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Coating | TiAlN |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Corner Radius |
