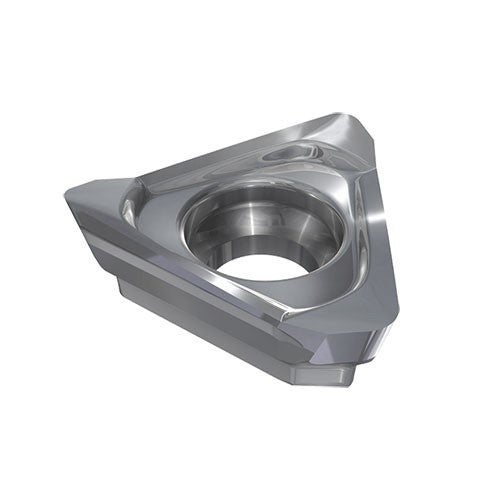

HM390 TDCR 150508 FW-P IC28
Item #: EH563365381
Brand: Iscar
Model #: 3365381
| Product Specifications | |
|---|---|
| Applicable Material | | Non Ferrous Metals | |
| Coating | Uncoated |
| Application | | Facing | Helical Interpolation | Milling Inserts | Rampdown | Shouldering | Slotting | |
| Grade | IC28 |
| Insert Length (INSL) | 0.673″ |
| Maximum Feed per Tooth (fz(max)) | 0.0087 ″/tooth |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.5118″ |
| Tool Type | Single sided Inserts |
| Inscribed Circle Diameter (IC) | 0.449″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.252″ |
| Cutting Edge Effective Length (LE) | 0.512″ |
| Wiper Edge Length (BS) | 0.091″ |
| Measurement Type | Inch |
| Insert Included Angle (EPSR) | 60 Degrees |
| Body Material | Carbide |
