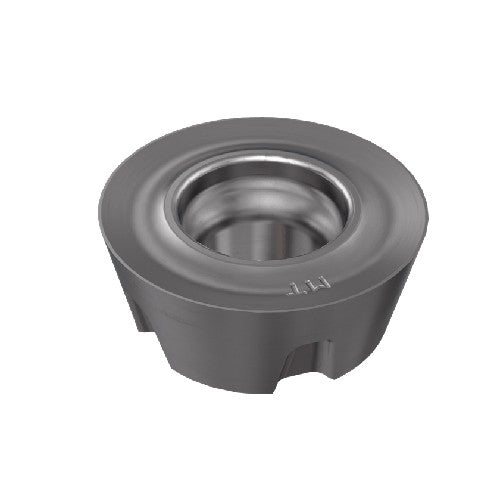

RPMX 1003M0-HT5 IC5820
Item #: EH563365111
Brand: Iscar
Model #: 3365111
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Application | | Facing | Milling Inserts | Profiling | Rampdown | |
| Cutting Direction (HAND) | Neutral |
| Corner Radius (RE) | 0.1969″ |
| Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.13″ |
| Number of Cutting Edges | 5 |
| Coating | Al2O3 |
| Measurement Type | Inch |
| Grade | IC5820 |
| Body Material | Carbide |
