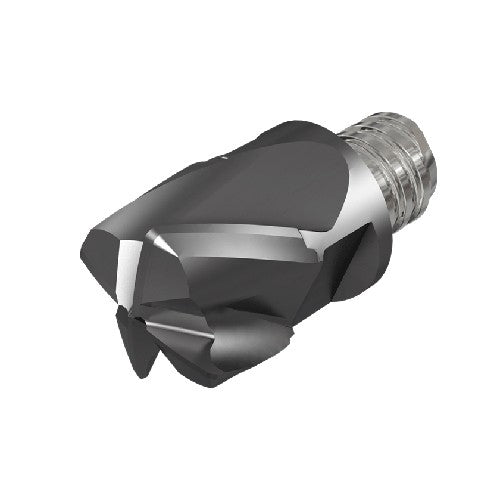

MM ELB10R20A07-4T06 IC908
Item #: EH563363183
Brand: Iscar
Model #: 3363183
| Product Specifications | |
|---|---|
| Application | | Profiling | |
| Overall Length (OAL) | 19.65 mm |
| Cutting Diameter (DC) | 10 mm |
| Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 4 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 1 mm |
| Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 |
| fz(max) | 0.3 mm/tooth |
| Depth of Cut Maximum (APMX) | 1.42 mm |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Body Material | Carbide |
| Functional Length (LF) | 13 mm |
