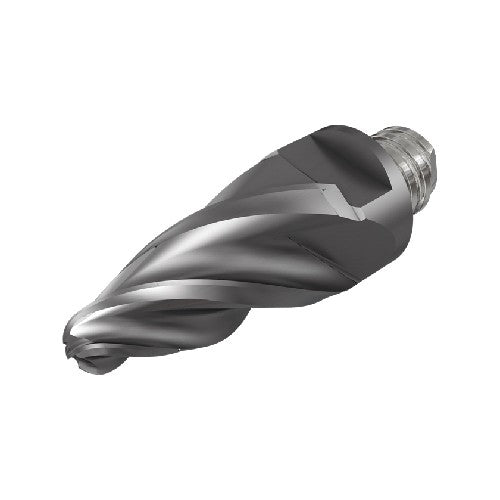

MM EOB16R3.0R75A26-4T10 IC908
Item #: EH563363181
Brand: Iscar
Model #: 3363181
| Product Specifications | |
|---|---|
| Application | | Profiling | |
| Overall Length (OAL) | 45.25 mm |
| Cutting Diameter (DC) | 3.54 mm |
| Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 4 |
| Profile Angle (PRFA) | 24 |
| Corner Radius (RE) | 3 mm |
| Tool Cutting Edge Angle (KAPR) | 78 Degrees |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 16 mm |
| fz(max) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 27 mm |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Body Material | Carbide |
| Functional Length (LF) | 33.4 mm |
