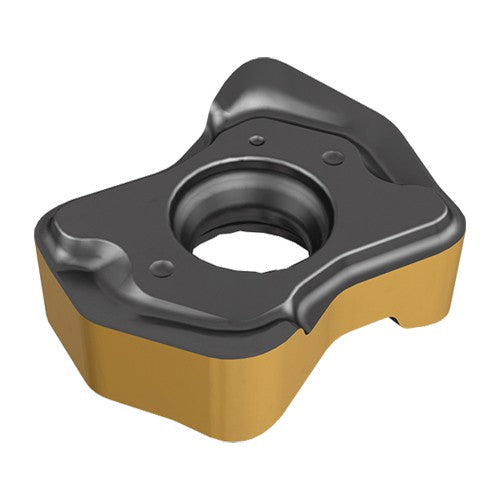

FFX4 XNMU 080620T IC808
Item #: EH563359962
Brand: Iscar
Model #: 3359962
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0472 ″/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.705″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0787″ |
| Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.614″ |
| Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN |
| Body Material | Carbide |
| Grade | IC808 |
