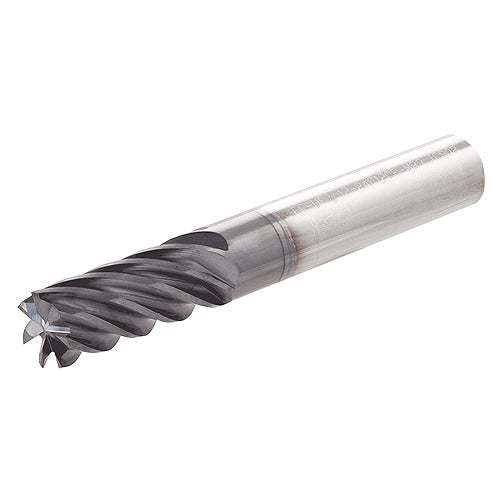

EC-H7 20-60C20CFR1.0-M140 IC902
Item #: EH563344070
Brand: Iscar
Model #: 3344070
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 20 mm |
| Application | | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 60 mm |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Overall Length (OAL) | 140 mm |
| Grade | IC902 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Flute Count (NOF) | 7 |
| Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
