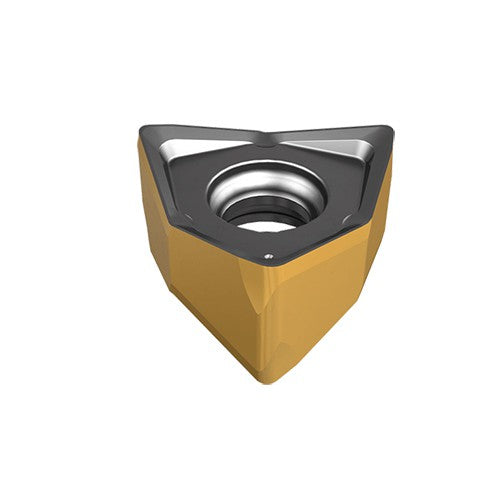

H690 WNMU 0403-PNTR IC810
Item #: EH563341156
Brand: Iscar
Model #: 3341156
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | |
| Grade | IC810 |
| Application | | Facing | Milling Inserts | Rampdown | Shouldering | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0063 ″/tooth |
| Insert Length (INSL) | 0.165″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Depth of Cut Maximum (APMX) | 0.157″ |
| Cutting Edge Effective Length (LE) | 0.165″ |
| Insert Thickness (S) | 0.138″ |
| Measurement Type | Inch |
| Coating | AlTiCrN+TiN |
| Body Material | Carbide |
