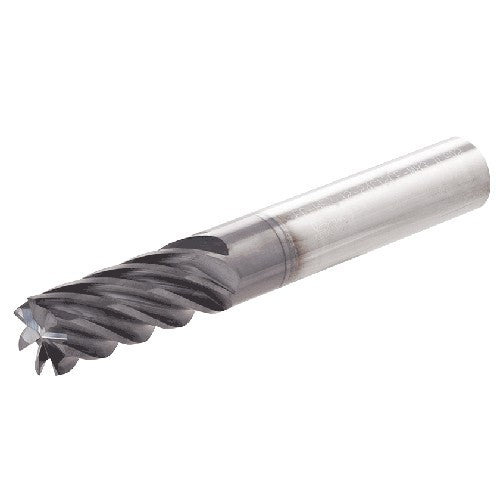

ECI-H7 375-2.25C375CF-5 IC902
Item #: EH563339319
Brand: Iscar
Model #: 3339319
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Application | | Helical Interpolation | Rampdown | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Corner Chamfer Width (CHW) | 0.012″ |
| Depth of Cut Maximum (APMX) | 2-1/4″ |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Overall Length (OAL) | 5″ |
| Grade | IC902 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.0039 ″/tooth |
| Flute Count (NOF) | 7 |
| Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Flute Helix Angle (FHA) | 37 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.375″ |
| End Shape | Chamfer |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Code Machine Side (CCMS) | Cylindrical |
