EFSI-B44 500-1.0SL500R12 IC900
Item #: EH563338908
Brand: Iscar
Model #: 3338908
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Application | Finishing | Roughing | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 0.12″ |
| Depth of Cut Maximum (APMX) | 1″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 3″ |
| Grade | IC900 |
| Cutting Edge Material | Carbide |

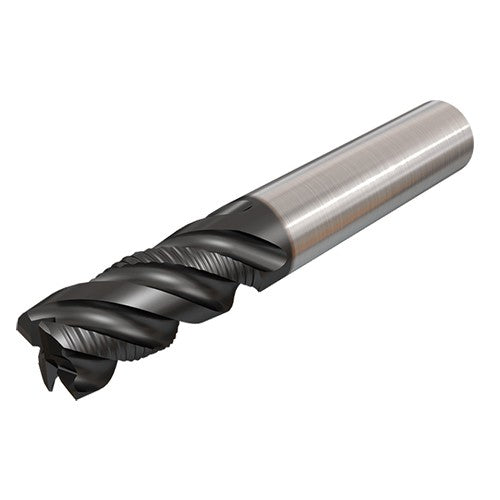

| Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Coating | AlTiN |
| Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Flute Count (NOF) | 4 |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 45 Degrees |
| Coolant Supply Property (CSP) | External |
| Shank Type | SL |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Decimal Equivalent | 0.5″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Measurement Type | Inch |
