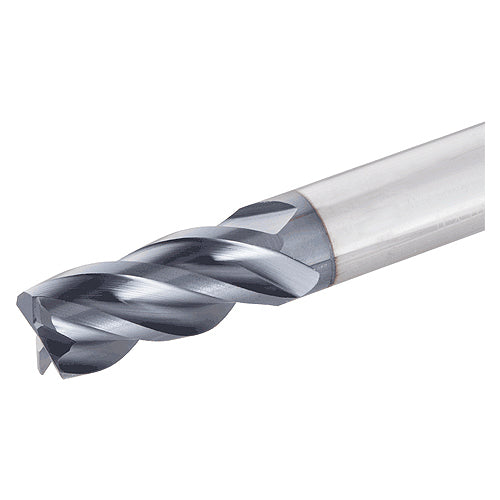

ECKI-H4R 312-625C030CF IC900
Item #: EH563337660
Brand: Iscar
Model #: 3337660
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.312″ |
| Corner Radius (RE) | 0.03″ |
| Connection Diameter Machine Side (DCONMS) | 0.312″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Grade | IC900 |
| Overall Length (OAL) | 2-1/2″ |
| Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.0024 ″/tooth |
| Coating | AlTiN |
| Minimum Feed per Tooth (fz(min)) | 0.0016 ″/tooth |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 36 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Decimal Equivalent | 0.312″ |
| End Shape | Corner Radius |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Application | Helical Interpolation | Rampdown | Shouldering | Slotting |
