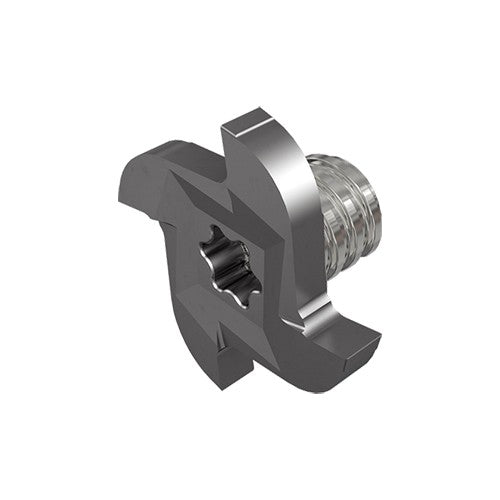

MM GRIT22K475-020-4T8 IC908
Item #: EH563329226
Brand: Iscar
Model #: 3329226
| Product Specifications | |
|---|---|
| Application | | Internal Groove Milling | Side Slotting | T Slotting | |
| Overall Length (OAL) | 0.506″ |
| Cutting Diameter (DC) | 0.854″ |
| Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Coating | TiAlN |
| Flute Count (NOF) | 4 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0079″ |
| Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.177″ |
| Body Material | Carbide |
| Cutting Width (CW) | 0.187″ |
| Connection Code Machine Side (CCMS) | MultiMaster |
