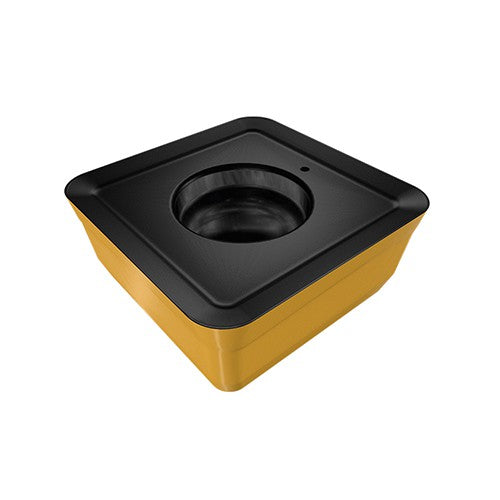

FFQ4 SOMT 1706RM-HP IC830
Item #: EH563323586
Brand: Iscar
Model #: 3323586
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0472 ″/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Milling Inserts | Plunging & Recessing | Profiling | Rampdown | Side Plunging | |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.689″ |
| Cutting Edge Material | Carbide |
| Insert Length (INSL) | 0.689″ |
| Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.0984″ |
| Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Insert Thickness (S) | 0.236″ |
| Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees |
| Measurement Type | Inch |
| Coating | AlTiN+TiN |
| Body Material | Carbide |
| Grade | IC830 |
