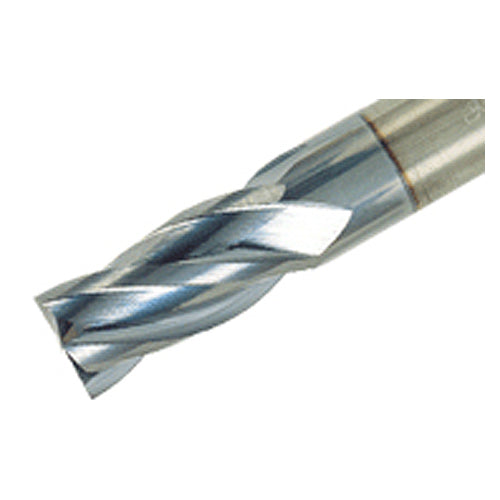

ECI-E-4 625-1.0-C625 IC900
Item #: EH5623119
Brand: Iscar
Model #: 5623119
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Application | | Counter Boring | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1″ |
| Grade | IC900 |
| Overall Length (OAL) | 3-1/2″ |
| Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Coating | AlTiN |
| Minimum Feed per Tooth (fz(min)) | 0.02 ″/tooth |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees |
| Decimal Equivalent | 0.625″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Square |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
