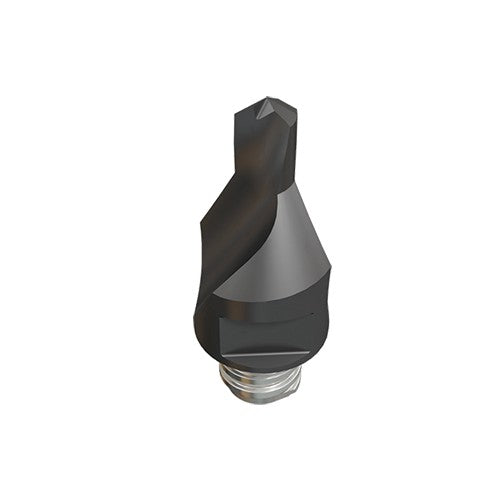

MM ECS-A3.15X08-2T05 IC908
Item #: EH5622350
Brand: Iscar
Model #: 5622350
| Product Specifications | |
|---|---|
| Application | | Countersinking | Drilling | |
| Coating | TiAlN |
| Cutting Diameter (DC) | 0.129″ |
| Tool Cutting Edge Angle (KAPR) | 60 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Measurement Type | Inch |
| Flute Count (NOF) | 2 |
| Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 |
| Drill Protruding Length | 0.18″ |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Length Group | Short |
| Functional Length (LF) | 0.591″ |
| Tool Type | center & Spot Drills |
| Overall Length (OAL) | 0.87″ |
| Body Material | Carbide |
| Grade | IC908 |
