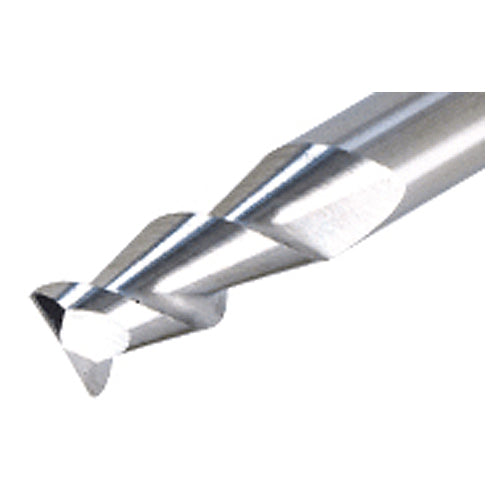

ECAI-F-2 437-875-C437 IC08
Item #: EH5621008
Brand: Iscar
Model #: 5621008
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.437″ |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 0.437″ |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 7/8″ |
| Grade | IC08 |
| Overall Length (OAL) | 2-3/4″ |
| Tool Type | Solid carbide for Aluminum |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | Uncoated |
| Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 2 |
| Body Material | Carbide |
| Flute Helix Angle (FHA) | 55 Degrees |
| Decimal Equivalent | 0.437″ |
| Shank Type | Round |
| Measurement Type | Inch |
| End Shape | Square |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Non Ferrous Metals | |
