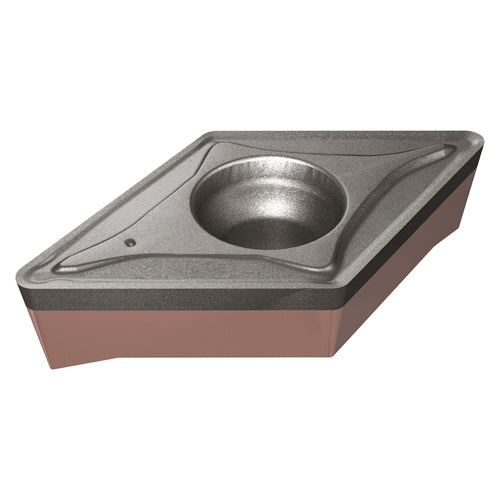

DCMT 13T508-M3M-SL IC6025
Item #: EH5568933
Brand: Iscar
Model #: 5568933
| Product Specifications | |
|---|---|
| Applicable Material | | Stainless Steel | |
| Grade | IC6025 |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Insert | Int 55° Diamond 93 5° Approach | |
| Tool Type | Turn Positive Inserts |
| Insert Style | DCMT |
| Fixing Hole Diameter (D1) | 0.177″ |
| Corner Radius (RE) | 0.0315″ |
| Min D.O.C. | 0.035″ |
| Insert Size | 13T508 |
| Depth of Cut Maximum (APMX) | 0.138″ |
| Cutting Edge Length (L) | 0.528″ |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.201″ |
| Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 0.433″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN |
