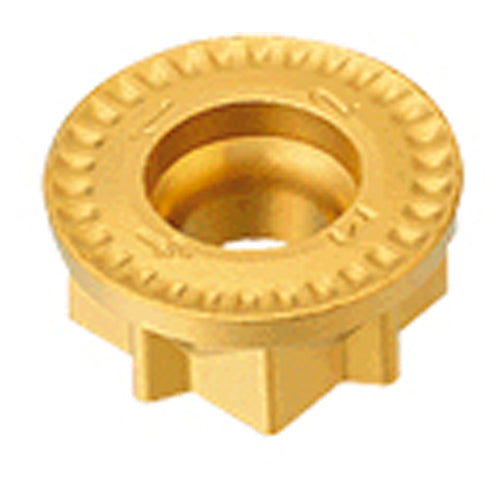

RC90MT 1205M0-SM IC8250
Item #: EH5550389
Brand: Iscar
Model #: 5550389
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | |
| Fixing Hole Diameter (D1) | 0.177″ |
| Application | | Ext. Round Face & Turn | Int. Round Face & Turn | |
| Min D.O.C. | 0.079″ |
| Insert Style | RC90MT |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Corner Radius (RE) | 0.236″ |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Size | 1205M0 |
| Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.197″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.472″ |
| Chip Breaker Type | SM |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Shape | Round |
| Grade | IC8250 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
